ASUS ABAE-LE - Desktop PC Motherboard - Socket 939 - DDR1 - MicroATX
£45.00
Sale price
£45.00
Regular price
Skip to product information
ASUS ABAE-LE - Desktop PC Motherboard - Socket 939 - DDR1 - MicroATX
£45.00
Sale price
£45.00
Regular price

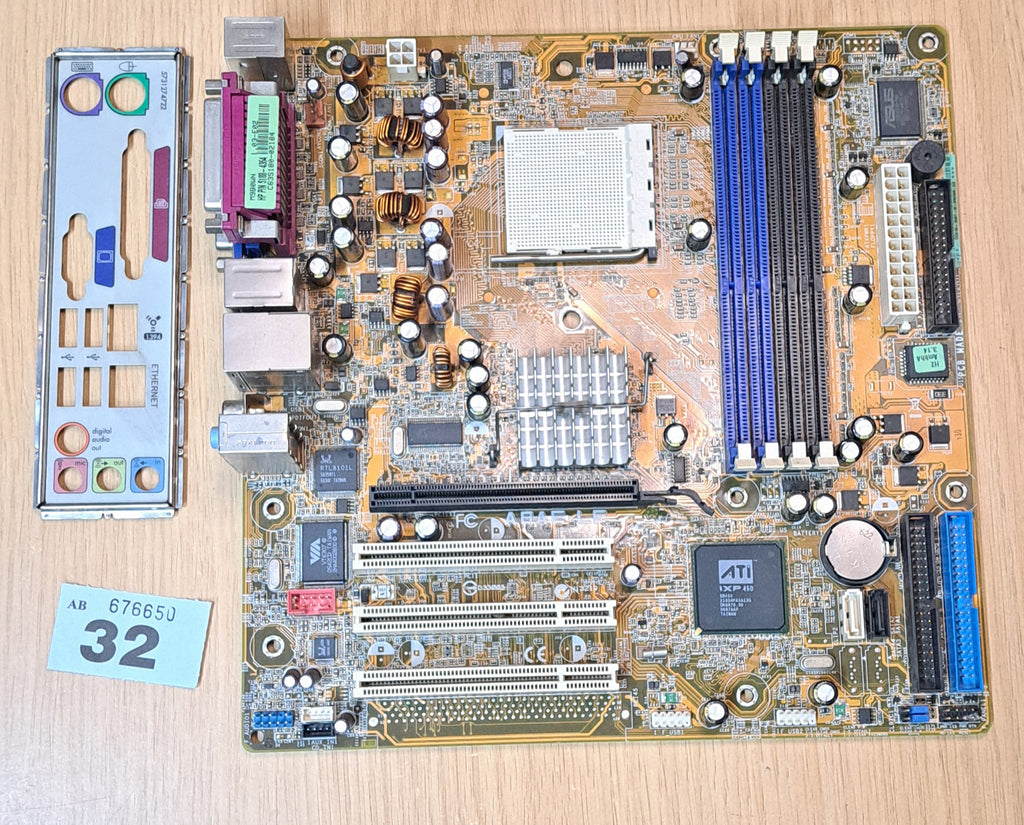

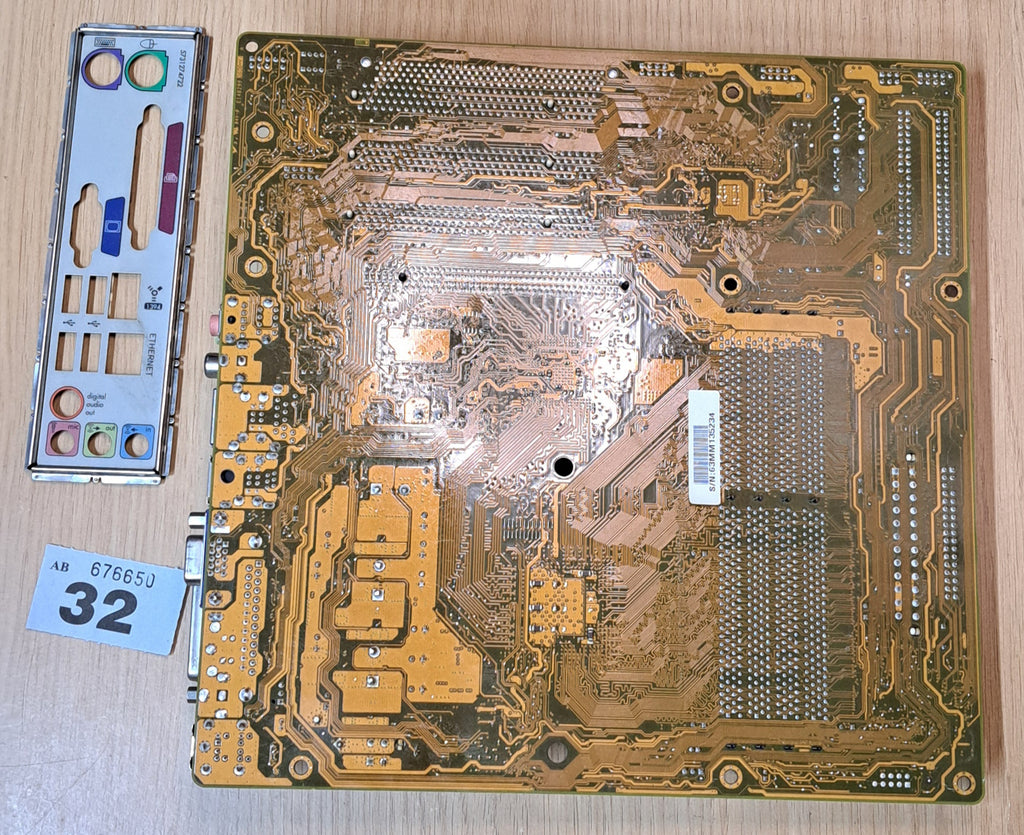

Tested & Refurbished PC Motherboard With I/O Plate.
The ASUS A8AE-LE (codenamed Amberine or AmberineM) is a legacy, original equipment manufacturer (OEM) motherboard manufactured by ASUS primarily for HP and Compaq Pavilion desktop computers released in the mid-2000s. Because it was produced specifically for pre-built OEM systems, standard retail documentation and direct driver support are not hosted on the main ASUS retail website.
The ASUS A8AE-LE (codenamed Amberine or AmberineM) is a legacy, original equipment manufacturer (OEM) motherboard manufactured by ASUS primarily for HP and Compaq Pavilion desktop computers released in the mid-2000s. Because it was produced specifically for pre-built OEM systems, standard retail documentation and direct driver support are not hosted on the main ASUS retail website.
The primary technical specifications for this retro motherboard are listed below:
Core Hardware Specifications
- CPU Socket: Socket 939 (supporting AMD Athlon 64, Athlon 64 X2, and Sempron processors).
- Chipset: ATi RS482 (Radeon Xpress 1100) Northbridge paired with the ATI SB400 or SB450 Southbridge.
- Graphics: Integrated ATI Radeon-based on-board video with an available PCI Express x16 expansion slot for a dedicated graphics card upgrade.
- Form Factor: MicroATX (mATX) layout, measuring approximately 244mm x 244mm.
Memory Support
- RAM Type: DDR1 SDRAM (typically PC3200 / 400MHz, Non-ECC Unbuffered).
- DIMM Slots: 4 memory slots.
- Maximum Capacity: Supports up to 4 GB of RAM maximum (1 GB per slot).
Expansion & Internal Connectivity
- 1 x PCI Express x16 slot
- 3 x Standard 32-bit PCI slots
- 2 x Serial ATA (SATA I) connectors
- 1 x Parallel ATA / IDE header (supporting two legacy drives)
- 1 x Floppy drive interface

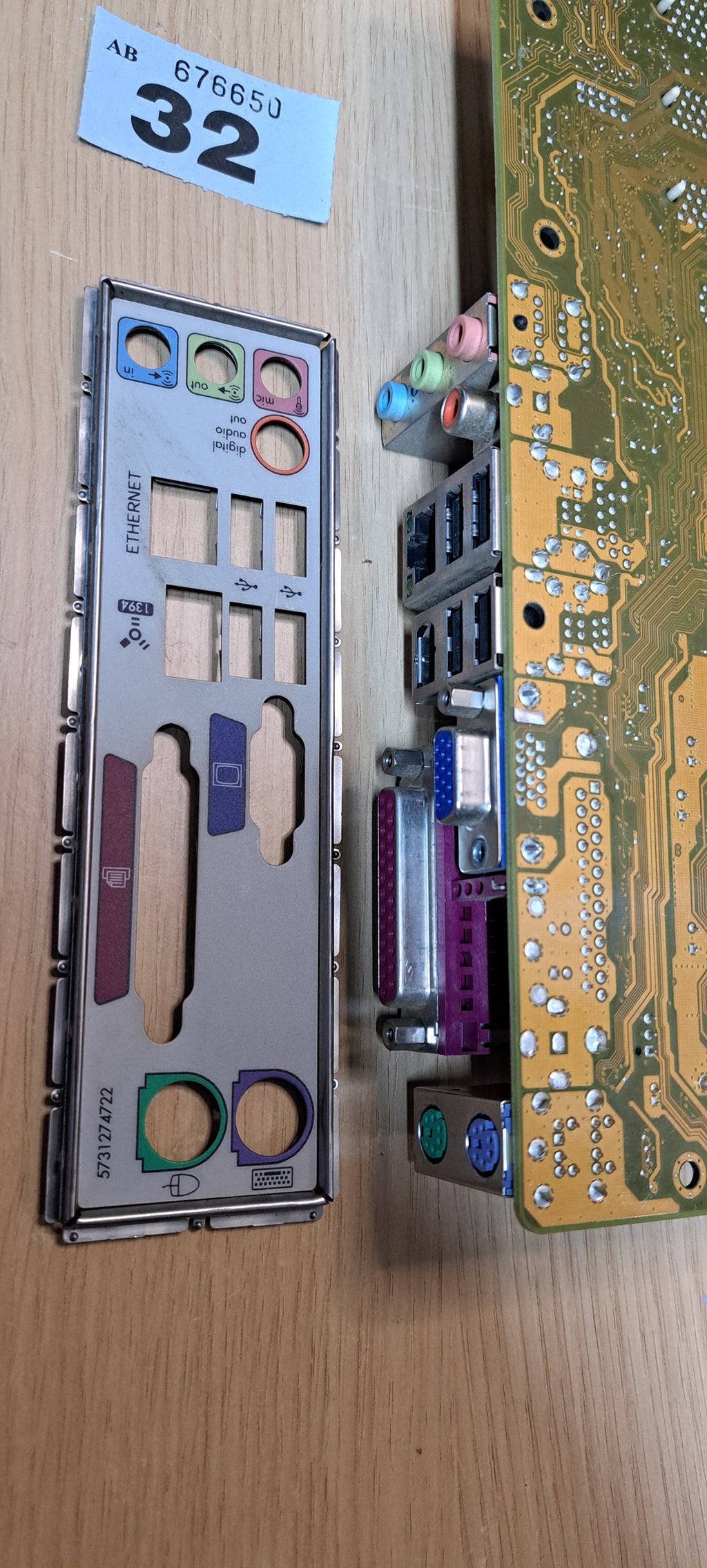

Back Panel I/O Ports
- 2 x PS/2 ports (for keyboard and mouse)
- 1 x VGA video output
- 1 x Parallel port
- 4 x USB 2.0 ports
- 1 x IEEE 1394 FireWire 400 port
- 1 x RJ-45 LAN Ethernet port
- Multi-channel internal audio jacks (3.5mm)
